Electric Overhead Travelling (EOT) Crane & Hoist supplier in Singapore

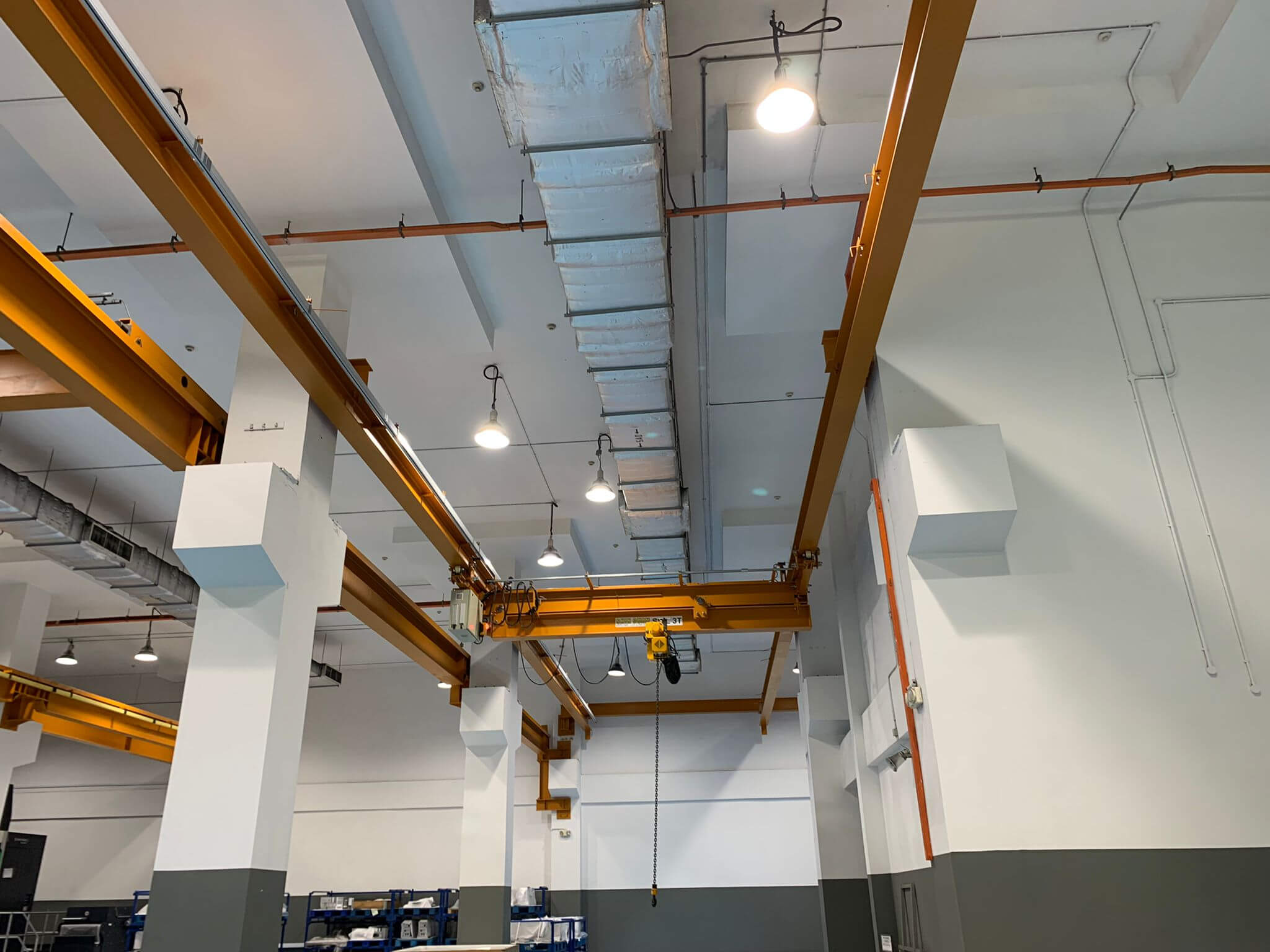

Shin Guan eot crane in a warehouse setting

Premier Electric Overhead Travelling (EOT) Crane & Hoist Solutions in Singapore

Shin Guan Electric Overhead Travelling (EOT) Cranes are synonymous with reliability, precision, and cutting-edge technology. Designed to meet the most demanding lifting tasks, our EOT cranes deliver unmatched performance in various industries. Whether you require heavy-duty lifting solutions or intricate material handling, our EOT cranes are your trusted choice.

Electric Overhead Travelling (EOT) Cranes: What You Need To Know

Electric Overhead Travelling (EOT) cranes are essential lifting solutions designed for industrial environments where efficiency and safety are paramount. These cranes operate on a horizontal beam, enabling them to move loads along a fixed path with precision and ease.

As a leading overhead crane supplier in Singapore, we offer various types of electric overhead travelling (EOT) cranes, including:

  • Single Girder
  • Double Girder
  • Underslung

1. Increased Productivity

EOT cranes streamline material handling processes, reducing the time and effort required to move heavy loads across your facility.

2. Enhanced Safety

These cranes are designed with advanced safety features, minimising the risk of accidents and ensuring a safer working environment.

3. Space Efficiency

EOT cranes maximise floor space, allowing for more efficient use of your facility’s layout. Their overhead design frees up valuable workspace below.

4. Customisable Solutions

Whether you need a single girder for light tasks or a double girder for heavy-duty applications, Our EOT cranes can be customised to meet the specific needs of your operation.

Electric Overhead Travelling (EOT) Crane & Hoist: Efficiency Meets Innovation

The Different Types Of Wire Rope Hoists

At Shin Guan, we currently offer the following wire rope hoists:

  • CM Series
  • NXM Series

Our CM series wire rope hoists offer various features, including:

  • A robust design that enables easy disassembly for maintenance.
  • The CM series electric wire rope hoists are equipped with robust safety features to ensure long service life, enabling them to endure severe use conditions for years.
  • The top and bottom hook travel limits of the CM series electric wire rope hoists are easily adjustable to ensure trouble-free operation.
  • An emergency stop button is available to automatically cut the main power in case of an emergency.
  • The CM series electric wire rope hoists tout a standard control voltage of 48V to safeguard the operator’s well-being.
  • A safe load limiter is available to avoid damage to the machinery, system, and building when lifting loads that exceed the preset values.
  • Durable rope guide ensures the wire rope is tightly reeved to the drum. Its flexible design also minimises the risk of breakage due to incorrect usage.
  • The cross-travel mechanisms of the CM series electric wire rope hoists are direct-driven and supported with articulated end carriage joints to ensure positive contact of all wheels on the track.
  • A manual brake release feature is available to lower the loads to the ground manually in case of unexpected power failures.
  • The CM series electric wire rope hoists are equipped with high tensile strength steel wire rope.
  • Highly efficient lifting motor capable of operating under heavy conditions.

Our NXS series wire rope hoists offer various features, including:

  • The NXS series wire rope hoists feature a modular casted chassis and direct-driven forged wheels designed to provide extreme endurance for a high level of productivity.
  • The NXS series wire rope hoists are equipped with a large diameter rope drum, enabling it to have the maximum number of reeving for easily reaching high lifting heights.
  • The smart falls system provides greater lifting capacities using smaller hoisting groups.
  • The high-performance polymer rope guide ensures the wire rope is tightly rolled to the drum, minimising the risk of breakage due to incorrect usage.
  • The NXS series electric wire rope hoists are equipped with 2160N/mm2 grade high tensile strength steel wire rope, significantly increasing the service life of the wire rope.
  • NXS travel wheels of the hoists are direct-driven, minimising the wear and tear on the travel mechanisms.
  • The NXS series wire rope hoists feature two-level top and bottom hook travel limiters. Both are easily adjustable to ensure trouble-free operation.
  • A safe load limiter is available to avoid damage to the machinery, system, and building when lifting loads that exceed the preset values.
  • The NXS series electric wire rope hoists are equipped with robust safety features to ensure reliable and long service life.
  • Every part of the NXS series electric wire rope hoist can be easily disassembled for effective maintenance and part replacement.
  • A manual brake release feature is available to lower the loads to the ground manually in case of unexpected power failures.
  • An emergency stop button is available to automatically cut the main power in case of an emergency.
  • The NXS series electric wire rope hoists tout a standard control voltage of 48V to safeguard the operator’s well-being.
  • The NXS series electric wire rope hoists can be equipped with HoistSense+ Electronic Monitoring System to minimise downtime and maximise efficient operation time.
Download Brochure
Previous
Next

Frequently Asked Questions

What is an EOT crane or hoist used for?

An electric crane or hoist is a mechanical device designed for lifting and moving heavy loads. It operates using an electric motor that drives a chain or wire rope to raise the load. Electric hoists are commonly employed in various industrial settings, including construction, automotive repair, manufacturing, shipyards, and other heavy-duty industries.

Rest assured that our electric cranes and hoists comply with the latest industry safety standards and regulations. We prioritise the safety and reliability of our equipment, ensuring that our cranes provide secure and efficient operation in any industrial setting.

Yes, our electric cranes and hoists are all fully customisable. We work closely with you to tailor your crane to your unique operational requirements.

The lifespan of your electric crane or hoist is influenced by how often and how intensively it is used. Over time, components will naturally wear out, and parts may degrade, making periodic maintenance essential. Fortunately, with regular and proper servicing, your equipment can remain operational for up to 10 years.
